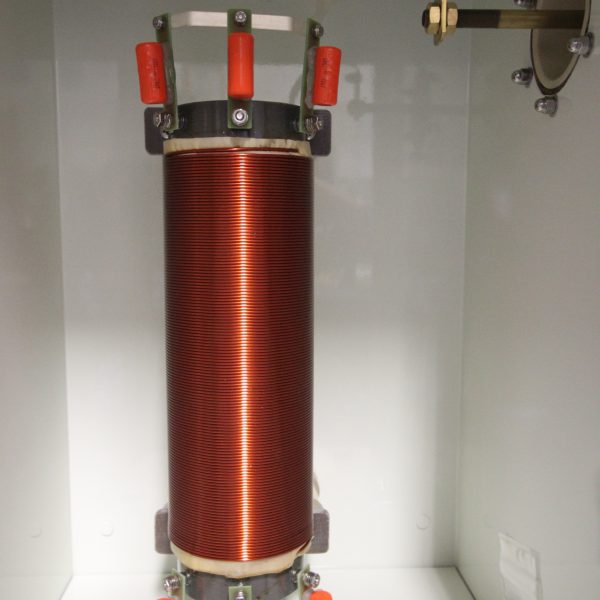

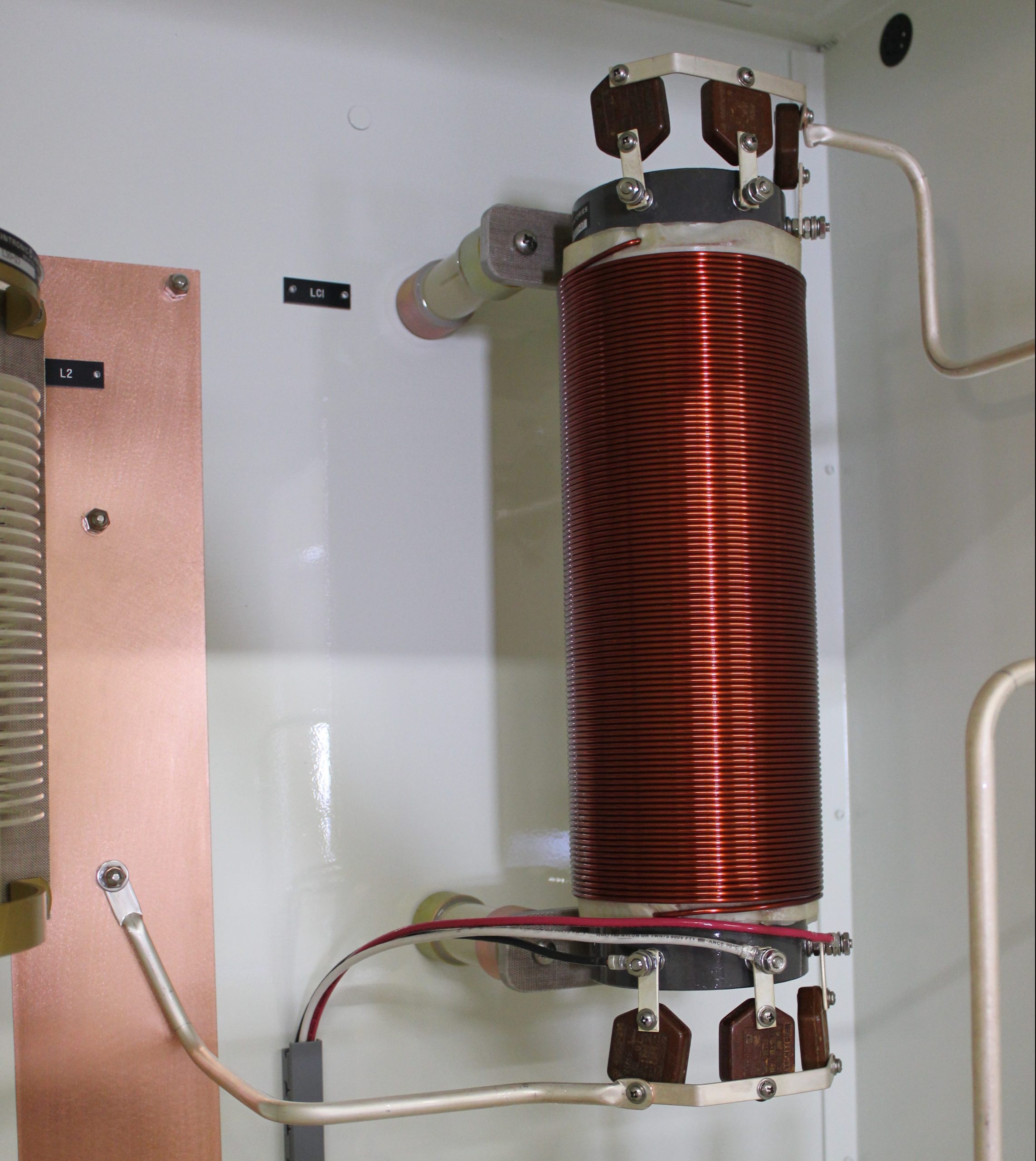

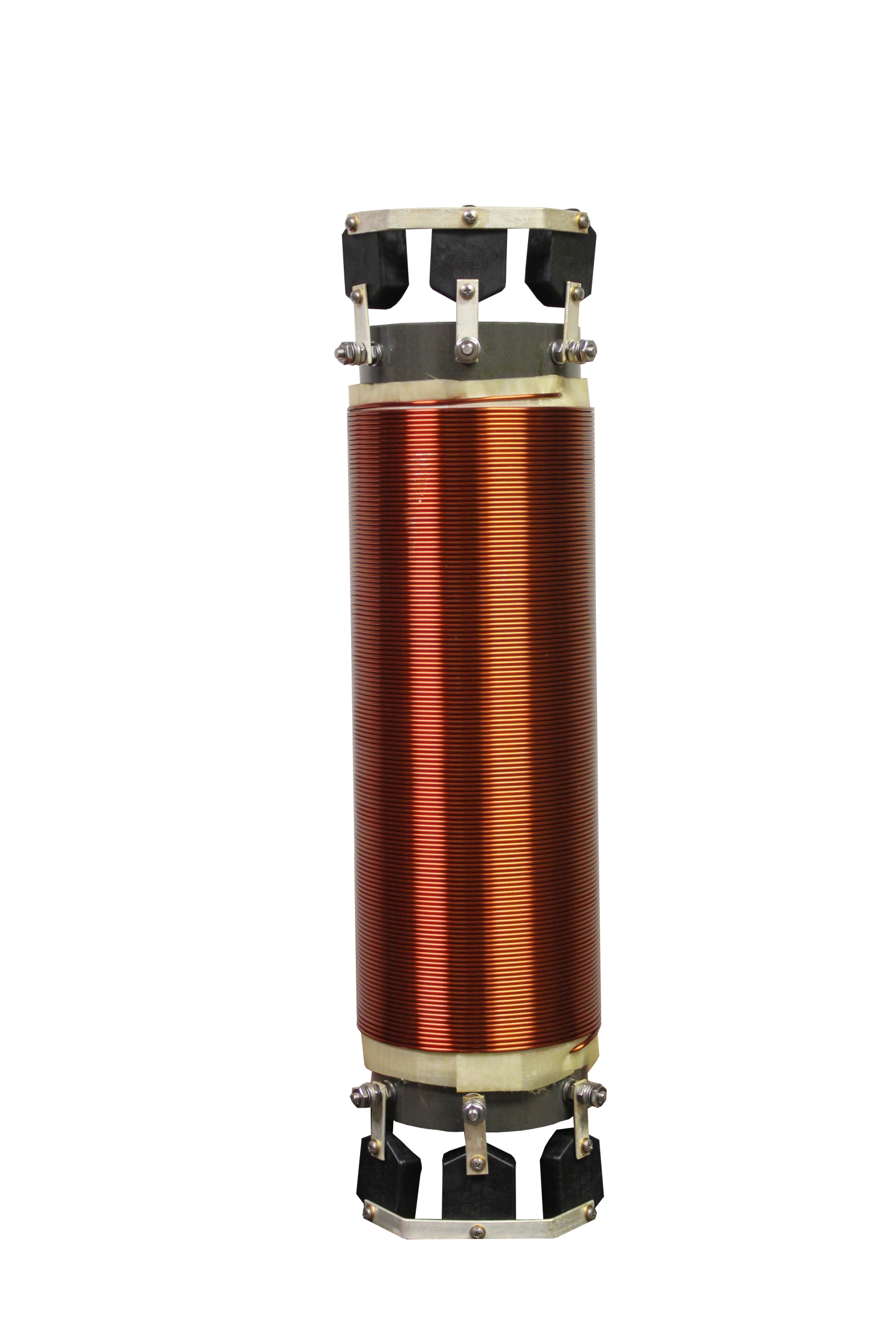

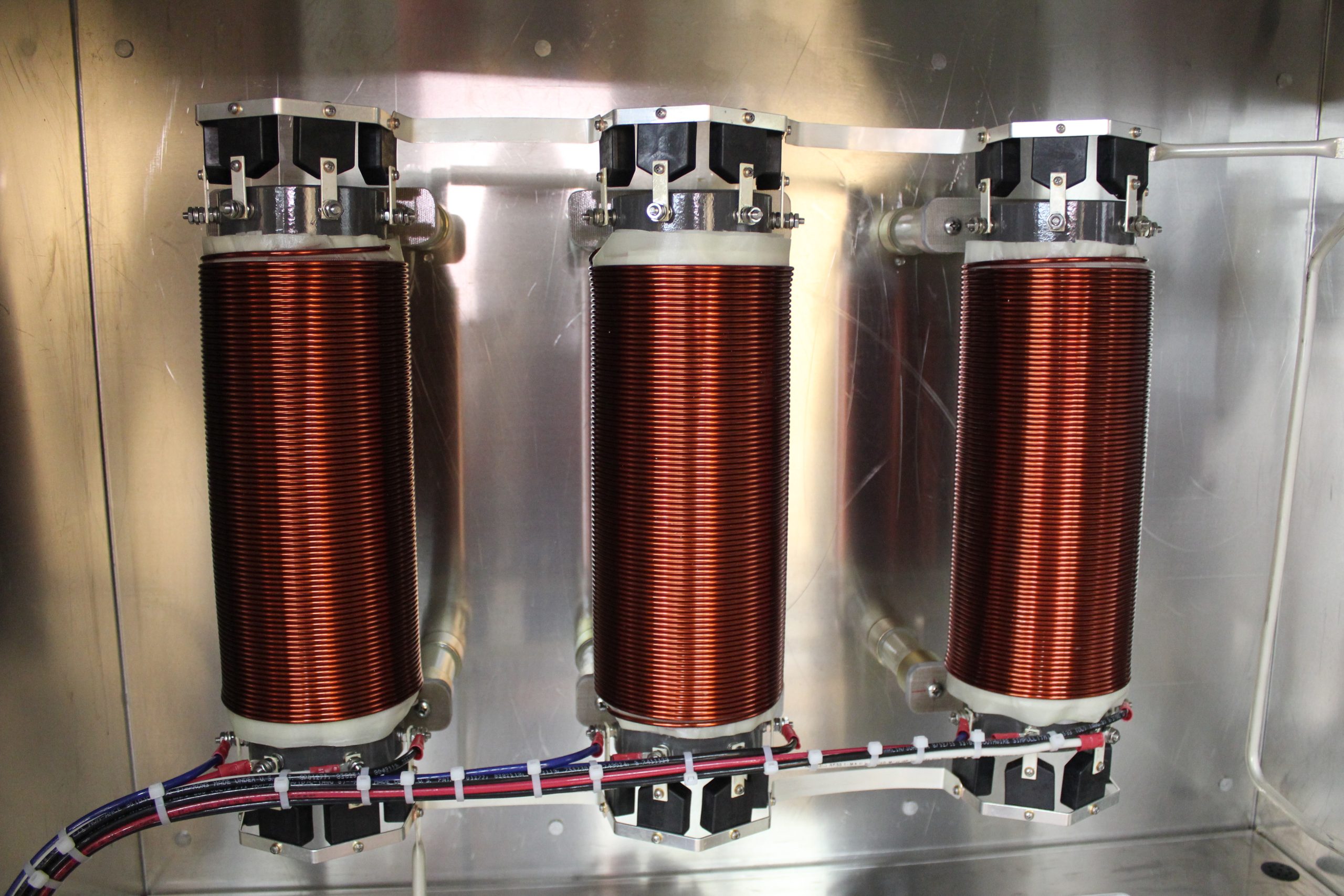

Lighting Choke

• Optional Painted Aluminum weatherproof housing

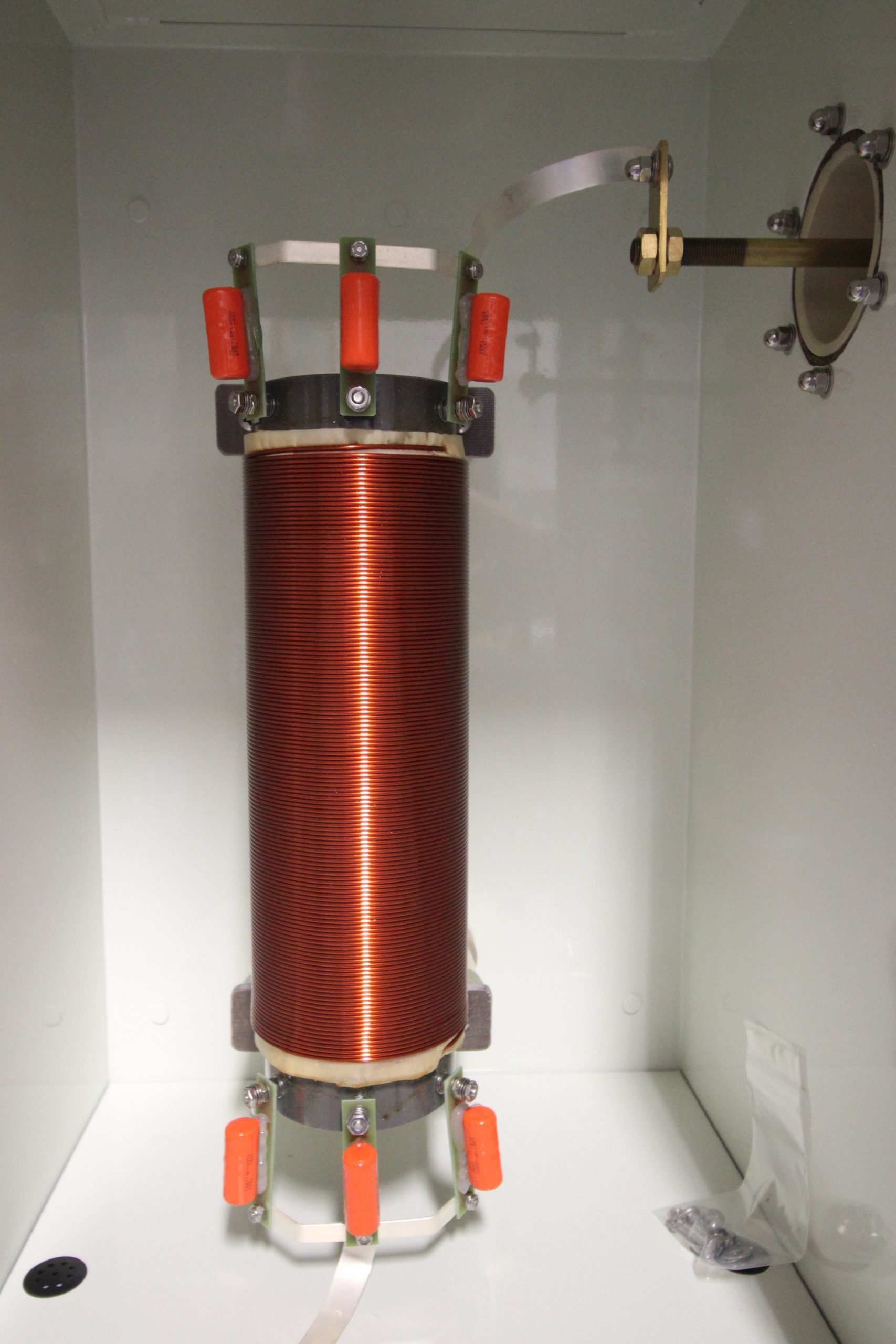

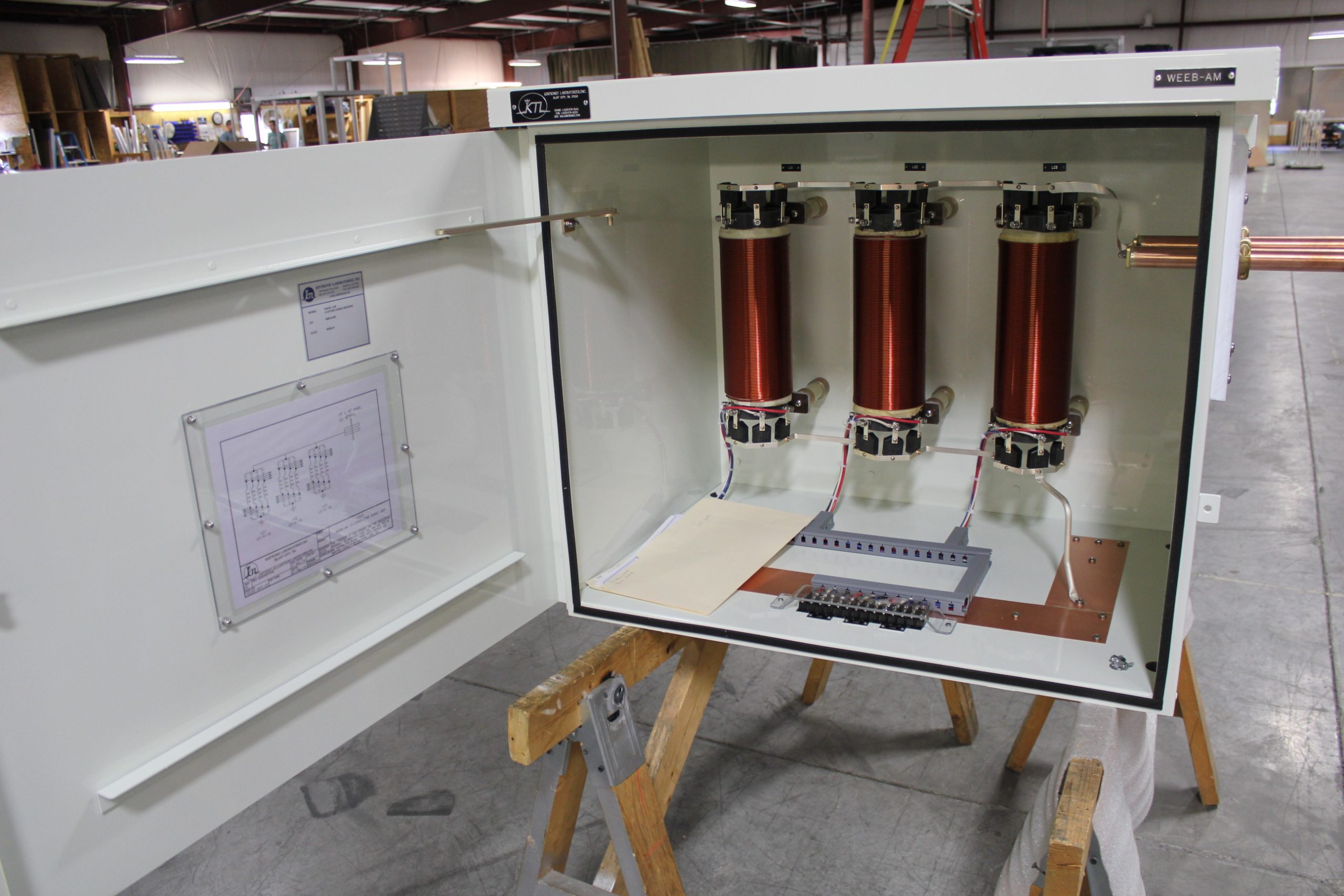

• Standard chokes available in 2, 3 or 4 wire
• Bypass mica capacitors at both ends of each winding
• Option available with static drain configuration
• Standard 12, 10 or 8 AWG windings available for 15, 25 or 35 Amp rating

We offer lighting chokes with either the polypro film capacitors (orange ones) or the .01 MFD mica capacitors (black ones).

Chokes with the polypro film capacitors have a -R1 at the end of the part number, i.e. LC-3-12-R1.

Lighting choke housing sold separately.

Tower Lighting Isolation Devices Brochure
